Description

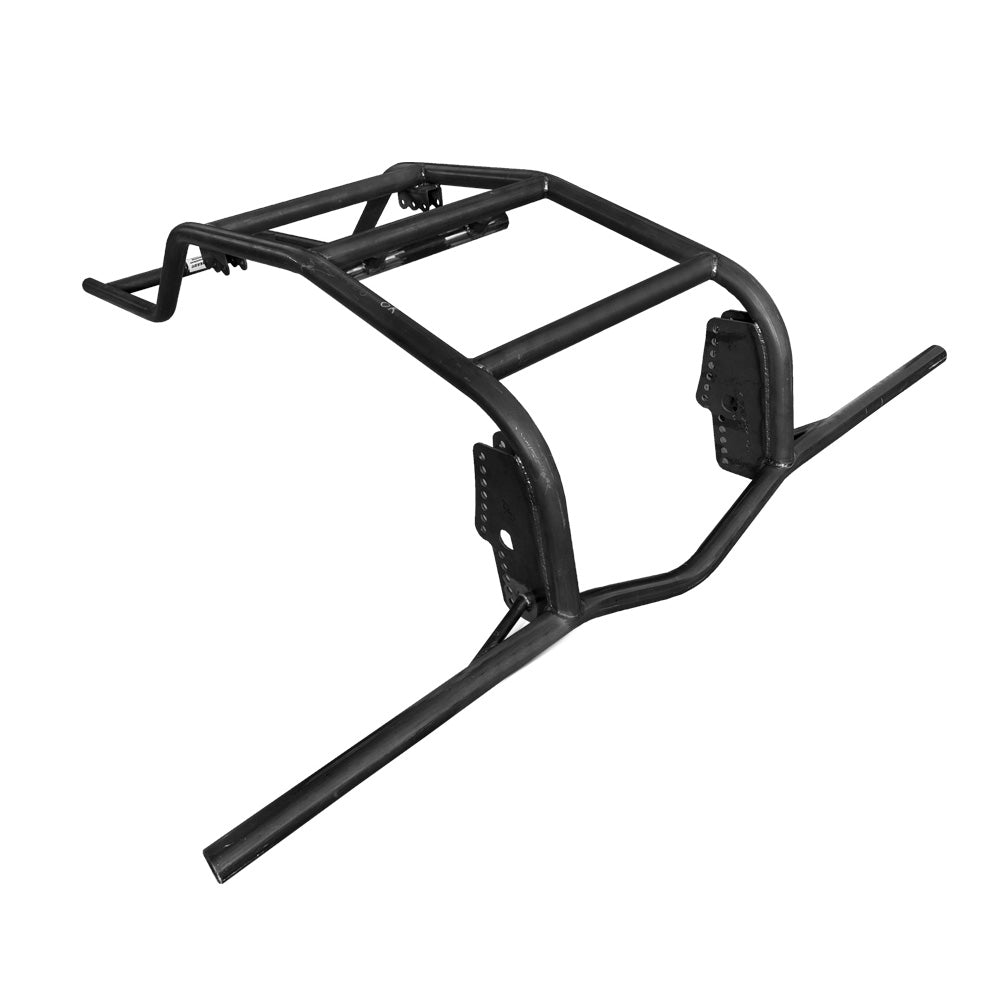

24″ P-500 series 4-link round tube frame is made of 1-5/8″ x .083" 4130 chromoly steel tubing. Jig-welded, with the 4-link mounts, upper shock crossmember anti-roll mount installed. 210 adjustments are possible depending on the rear housing brackets used.
- 3" Dropped Crossmember
- 58" Wide
- Center Line of
- 1/2″ Diameter 4-link mounting holes
- Anti-roll bar mount
- 3-Position Upper Shock Mount Works with or without Back Brace
Compatibility
|
Part Number |
Type | Description |
| 45-1524 | Rear Housing | 9" Ford Rear Axle Housing |
| 45-052MS | Rear Housing | 9" Ford Fabricated Mild Steel Rear Axle Housing |
| 45-052CM | Rear Housing | 9" Ford Fabricated Chromoly Steel Rear Axle Housing |
| 40-135CMF | 4-Link Bars | Chromoly Tube Set with 1/2" Hardware & Rear Housing Brackets |
| 40-135CMFK | 4-Link Bars | Chromoly Tube Set with 1/2" Hardware, No Brackets |
| Wishbone |
P-500 Chromoly Wishbone Kit |
|
|
40-136 |
Rod Ends |
4-Link Rod End Package Chromoly 3/4" Shank x 1/2" Hole |
| 40-222 | Shock Mount | 5" Lower Shock Mount Kit |
| 40-222K | Shock Mount | 5" Lower Shock Mount Kit, No Housing Brackets |
|
40-087 |
Anti-Roll Bar |
19" Torsion Anti-Roll Bar Kit Splined Shaft for P-500 4-Link Kit |
| 10-801 | Floor Kit | Aluminum Rear Floor Kit |
| 10-805 | Floor Kit | Steel Rear Floor Kit |
Specifications
24″ Pro 500 4-Link Chromoly Welded Rear Frame
| For Make | |
|---|---|
| For Model | |
| For Year |
