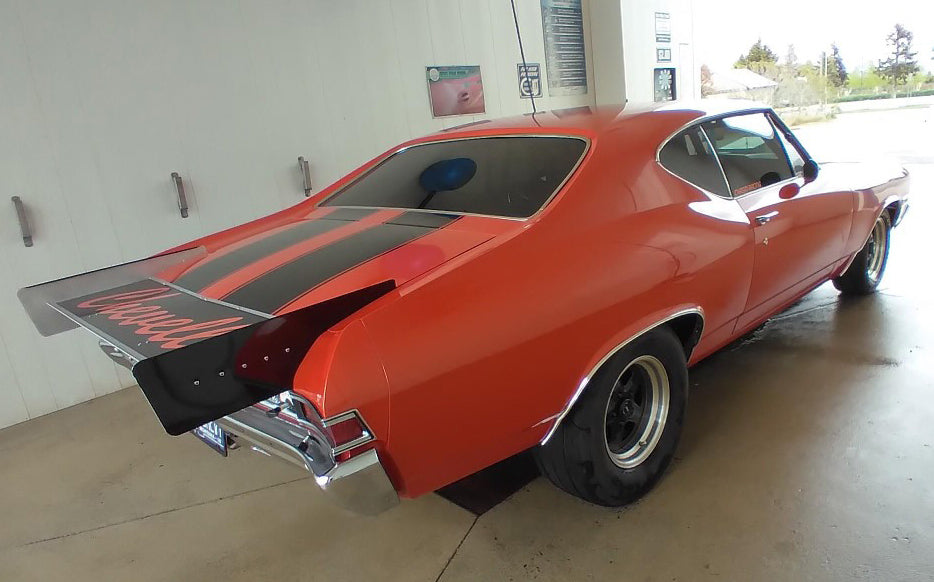

Description
The racer will be able to gradually add downforce to find the ‘sweet spot.’ This is where maximum downforce is being applied without sacrificing speed. Slight adjustments may need to be made throughout an event, due to changing track conditions, or tuning and suspension adjustments. The ability to adjust the spoiler will provide the racer with an advantage.
Made of .040" Aluminum
Width: 51-3/4″
Length: 14″
Includes (2) 70-702 support tubes and hardware. Assembly required

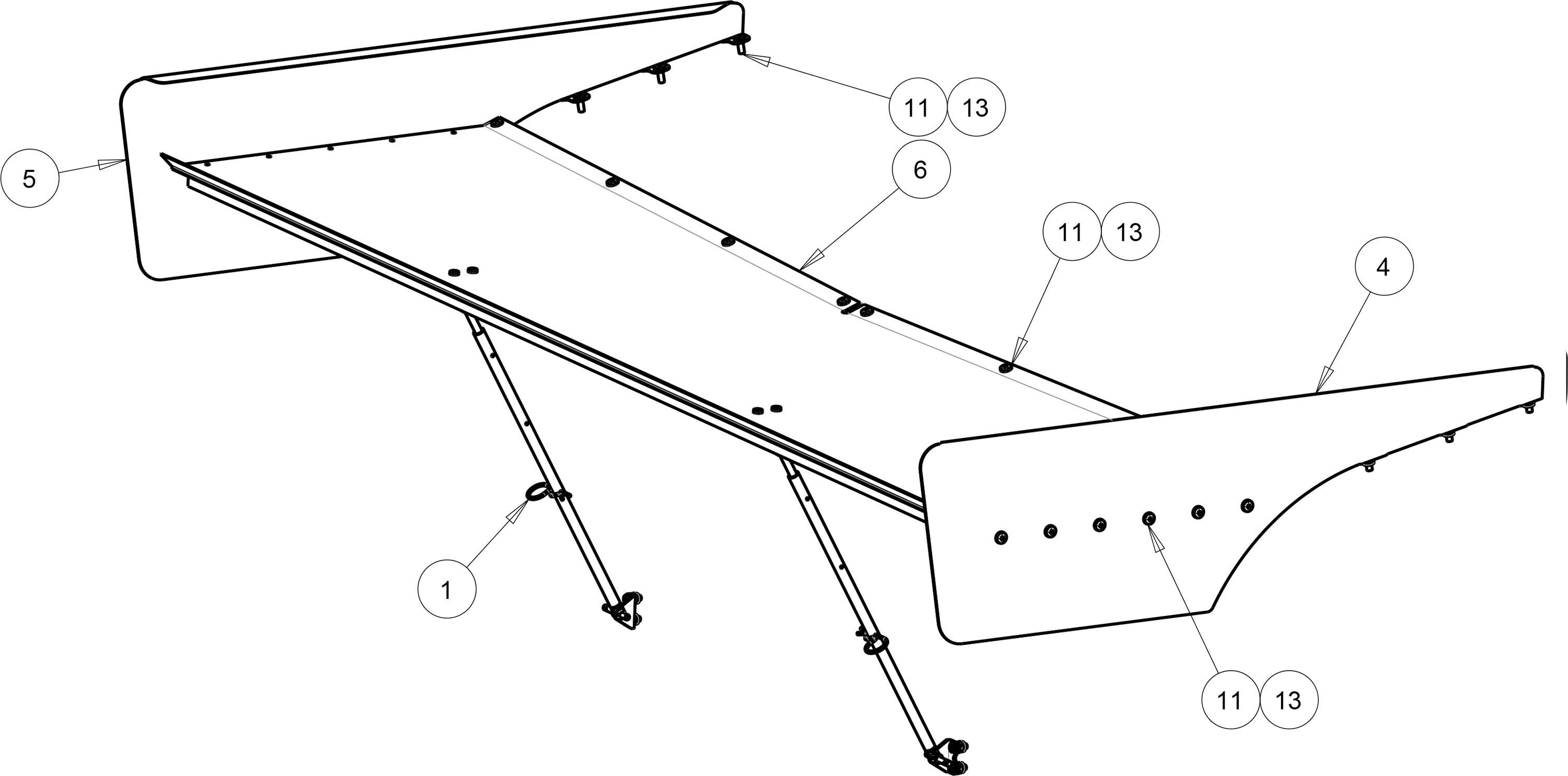

Bill of Materials
| Item |
Qty |
Part Number |
Description |
| 1 |
2 |
HPC102 |
3/32 Hitch Pin |
| 2 |
2 |
95-715-04 |
Spill Plate Angle |
| 3 |
1 |
95-715-03 |
Stiffener - Deck |
| 4 |
1 |
95-715-02-R |
Spill Plate |
| 5 |
1 |
95-715-02-L |
Spill Plate |
| 6 |
1 |
95-715-01 |
Spoiler Deck |
| 7 |
2 |
95-702-03 |
Outer Tube |
| 8 |
4 |
95-702-02 |
Wing Strut Mounting Bracket |
| 9 |
2 |
95-702-01 |
Slider Tube |
| 10 |
2 |
65-512 |
10-32 x 5/8" Screw |
| 11 |
26 |
65-511 |
10-32 x1/2" |
| 12 |
2 |
65-508 |
10-32 Hex Nut |
| 13 |
25 |
65-507 |
10-32 Nylock Nut |
| 14 |
8 |
65-505 |
8-32 1/2" |
| 15 |
8 |
65-503 |
8-32 Nylock Nut |
| 16 |
2 |
63-069 |
3/16 Detent Pin |
| 17 |
2 |
63-067 |
10-32 Threaded Clevis |

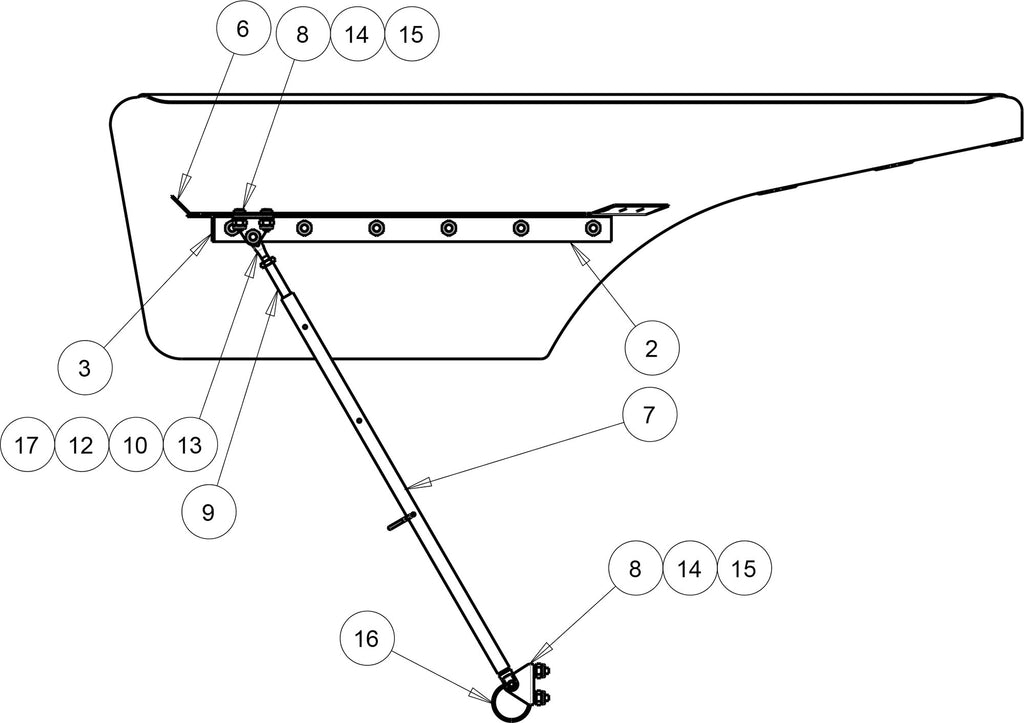

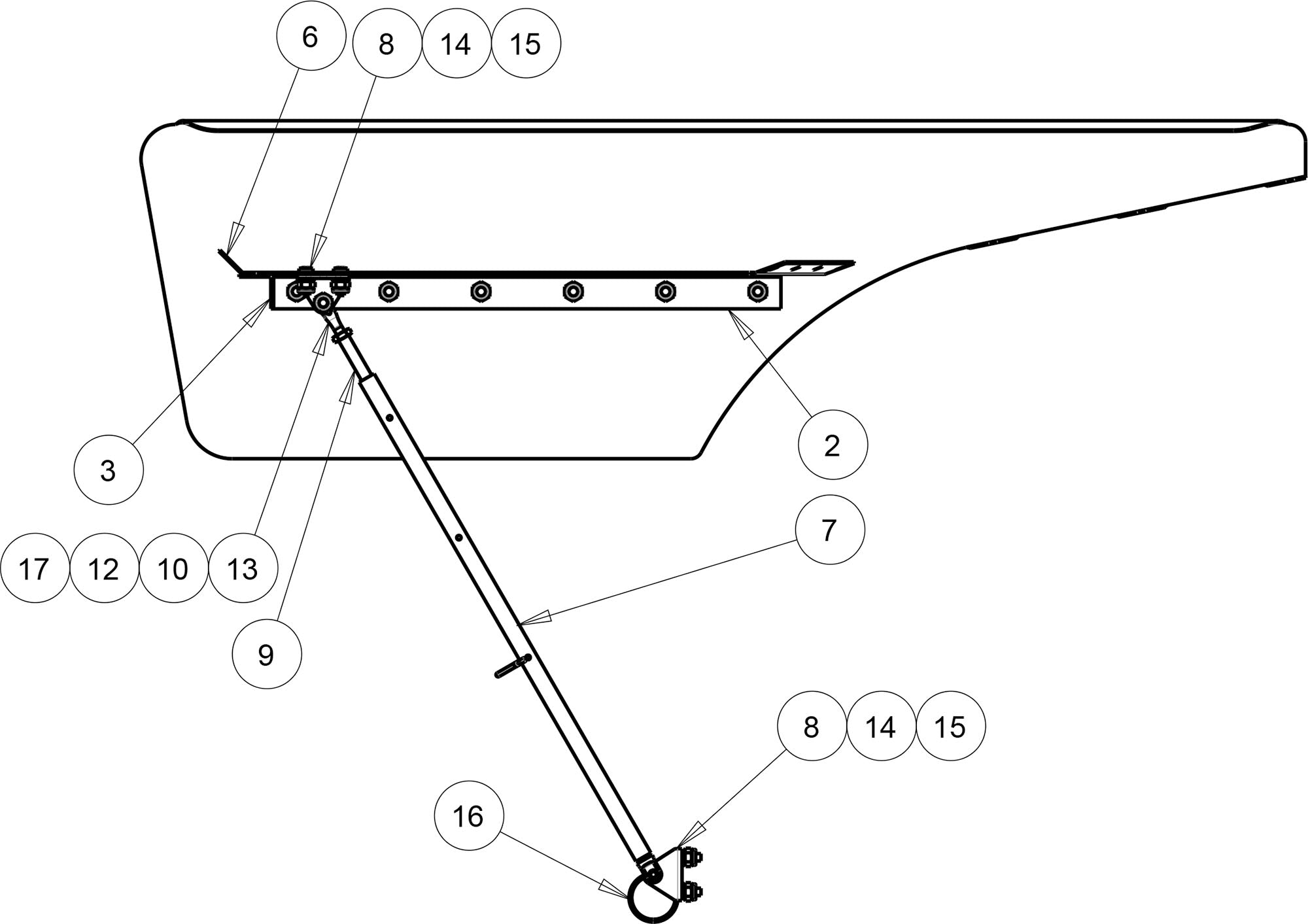

Installation Instructions
1. Rivet spill plate angles (2), deck stiffener (3) and strut mounting brackets (8) to spoiler deck (6).
2. Position spoiler deck on trunk lid. Mark location of hole on trunk lid. Drill 3/16 holes in trunk lid.
3. Assemble spoiler support struts (7,9,17,12) and mounting brackets (8,16). Bolt struts to spoiler deck.
4. Put hitch pin through strut tube so that bracket is against face of bumper. Mark location of bracket holes on bumper. Drill 3/16 holes in bumper. Attach strut tubes to spoiler and bumper brackets.
5. Place spill plate (4,5) against trunk lid and spoiler deck angles.
Note: Tabs on spill plates can go on top or bottom of trunk lid. Mark location of holes on trunk lid. Mark location of holes in spill plate angle on spill plate. Drill 3/16 holes in trunk lid and spill plate.
Specifications
| For Make | Chevrolet, Pontiac, and Buick |
|---|---|
| For Model | Chevelle, GTO, Cutlass, Skylark, and Monte Carlo |
| For Year | 1968, 1969, 1970, 1971, and 1972 |
