Description

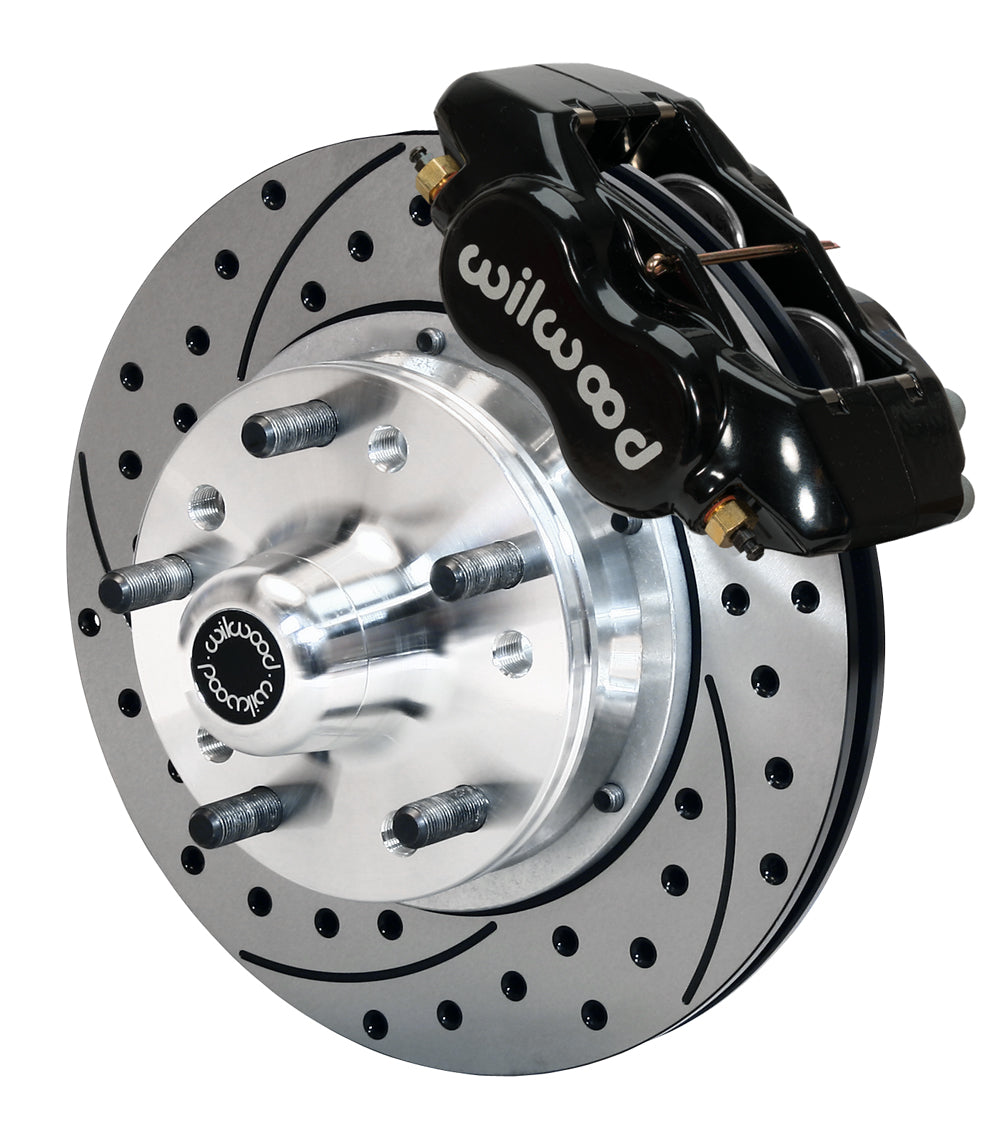

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for GM 1967-1969 F-Body and 1964-1974 A-Body vehicles offer disc brake upgrade solutions for both OEM Disc & Drum spindles.

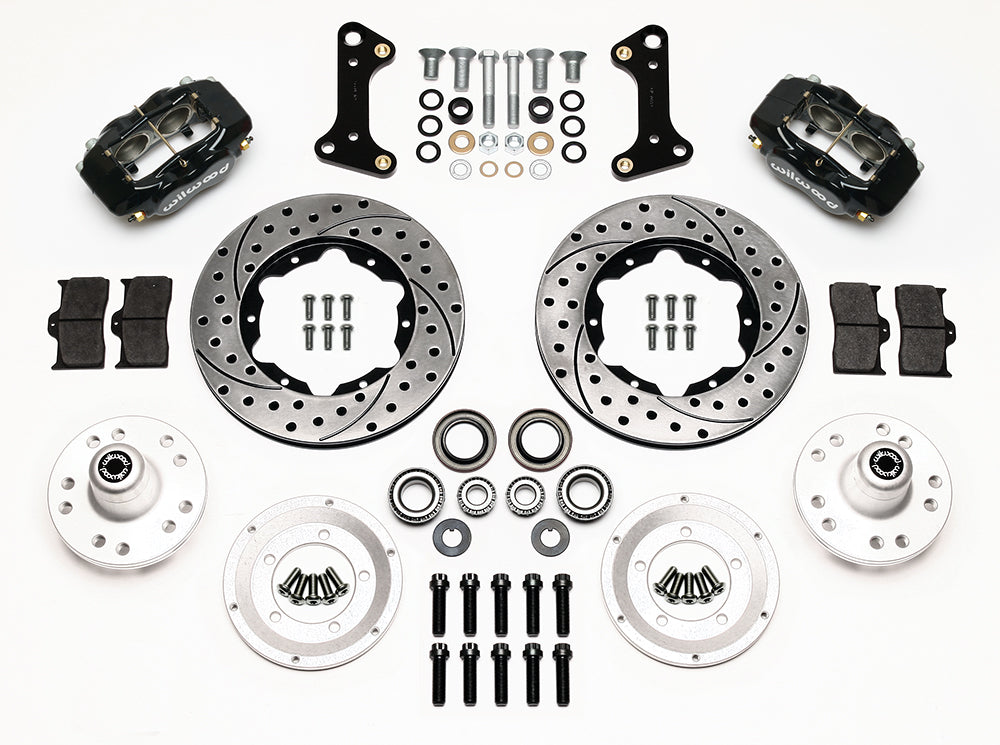

We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit widens the track by only +.19" from original drum brake position or narrows by -.31" from the original disc brake rotor assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.
| OE Hub Offset: | +.19 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Drop SpindleFactory Disc SpindleFactory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.00 |
| Min Wheel Diameter Req'd*: | 14 |
| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel.Wheel Clearance Diagram | |
| UPC Number | |
| UPC | 889545011494 |
| VEHICLE MAKE | VEHICLE MODELS |
| Buick | Buick Apollo 1973-1974 Disc Brake Spindle |
| Buick | Buick Apollo 1973-1974 Drum Brake Front |
| Buick | Buick Apollo 1973-1974 w/ Ridetech Pin Spindle |
| Buick | Buick Gran Sport 1965-1967 All |
| Buick | Buick Gran Sport 1965-1967 w/ Ridetech Pin Spindle |
| Buick | Buick GS 1970-1972 Base |
| Buick | Buick GS 1970-1972 w/ Ridetech Pin Spindle |
| Buick | Buick GS 350 1968 Base |
| Buick | Buick GS 350 1969 Disc Brake Spindle |
| Buick | Buick GS 350 1969 Drum Brake Front |
| Buick | Buick GS 350 1968-1969 w/ Ridetech Pin Spindle |
| Buick | Buick GS 400 1968 Base |
| Buick | Buick GS 400 1969 Disc Brake Spindle |
| Buick | Buick GS 400 1969 Drum Brake Front |
| Buick | Buick GS 400 1968-1969 w/ Ridetech Pin Spindle |
| Buick | Buick GS 455 1970-1972 Base |
| Buick | Buick GS 455 1970-1972 w/ Ridetech Pin Spindle |
| Buick | Buick Skylark 1964-1966 All |
| Buick | Buick Skylark 1967-1972 Disc Brake Spindle |
| Buick | Buick Skylark 1967-1970 Drum Brake Spindle |
| Buick | Buick Skylark 1964-1972 w/ Ridetech Pin Spindle |
| Buick | Buick Special 1964-1966 All |
| Buick | Buick Special 1967-1969 Disc Brake Spindle |
| Buick | Buick Special 1967-1969 Drum Brake Spindle |
| Buick | Buick Special 1964-1969 w/ Ridetech Pin Spindle |
| Buick | Buick Sportwagon 1964-1966 All |
| Buick | Buick Sportwagon 1967-1972 Disc Brake Spindle |
| Buick | Buick Sportwagon 1967-1970 Drum Brake Front |
| Buick | Buick Sportwagon 1964-1972 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet Camaro 1967-1969 Disc Brake Spindle |
| Chevrolet | Chevrolet Camaro 1967-1969 Drum Brake Front |
| Chevrolet | Chevrolet Camaro 1967-1969 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet Camaro 1968-1969 Z/28 w/ 4 Wheel Disc |
| Chevrolet | Chevrolet Chevelle 1964-1966 All |
| Chevrolet | Chevrolet Chevelle 1967-1972 Disc Brake Spindle |
| Chevrolet | Chevrolet Chevelle 1967-1972 Drum Brake Front |
| Chevrolet | Chevrolet Chevelle 1964-1972 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet Chevy II 1964-1966 All |
| Chevrolet | Chevrolet Chevy II 1967-1968 Disc Brake Spindle |
| Chevrolet | Chevrolet Chevy II 1967-1968 Drum Brake Front |
| Chevrolet | Chevrolet Chevy II 1962-1967 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet Corvette 1963-1964 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet Corvette 1965-1982 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet El Camino 1964-1966 All |
| Chevrolet | Chevrolet El Camino 1967-1972 Disc Brake Spindle |
| Chevrolet | Chevrolet El Camino 1967-1972 Drum Brake Spindle |
| Chevrolet | Chevrolet El Camino 1964-1972 w/ Ridetech Pin Spindle |
| Chevrolet | Chevrolet Malibu 1964-1966 All |
| Chevrolet | Chevrolet Malibu 1967 Disc Brake Spindle |
| Chevrolet | Chevrolet Malibu 1967 Drum Brake Front |
| Chevrolet | Chevrolet Monte Carlo 1970-1972 Disc Brake Spindle |
| Chevrolet | Chevrolet Nova 1967-1974 Disc Brake Spindle |
| Chevrolet | Chevrolet Nova 1967-1974 Drum Brake Front |
| Chevrolet | Chevrolet Nova 1969-1974 w/ Ridetech Pin Spindle |
| Ford | Ford F-100 1965-1979 w/ Ridetech Pin Spindle |
| Ford | Ford Falcon 1960-1965 w/ Ridetech Pin Spindle |
| Ford | Ford Mustang 1964-1966 w/ Ridetech Pin Spindle |
| GMC | GMC Sprint 1971-1972 Disc Brake Spindle |
| GMC | GMC Sprint 1971-1972 Drum Brake Spindle |
| GMC | GMC Sprint 1971-1972 w/ Ridetech Pin Spindle |
| Heidts | Heidts Pro-G 9999 Pro-G Suspension |
| Mercury | Mercury Comet 1960-1965 w/ Ridetech Pin Spindle |
| Oldsmobile | Oldsmobile 442 1964-1966 All |
| Oldsmobile | Oldsmobile 442 1967-1972 Disc Brake Spindle |
| Oldsmobile | Oldsmobile 442 1970-1971 w/ O.A.I. Drum Brake Spindles |
| Oldsmobile | Oldsmobile 442 1964-1971 w/ Ridetech Pin Spindle |
| Oldsmobile | Oldsmobile Cutlass 1964-1966 All |
| Oldsmobile | Oldsmobile Cutlass 1967-1972 Disc Brake Spindle |
| Oldsmobile | Oldsmobile Cutlass 1967-1972 Drum Brake Spindle |
| Oldsmobile | Oldsmobile Cutlass 1970-1972 w/ O.A.I. Drum Brake Spindles |
| Oldsmobile | Oldsmobile Cutlass 1964-1972 w/ Ridetech Pin Spindle |
| Oldsmobile | Oldsmobile Cutlass Supreme 1967-1972 Disc Brake Spindle |
| Oldsmobile | Oldsmobile Cutlass Supreme 1967-1972 Drum Brake Spindle |
| Oldsmobile | Oldsmobile Cutlass Supreme 1970-1972 w/ O.A.I. Drum Brake Spindles |
| Oldsmobile | Oldsmobile Cutlass Supreme 1967-1972 w/ Ridetech Pin Spindle |
| Oldsmobile | Oldsmobile F85 1964-1966 All |
| Oldsmobile | Oldsmobile F85 1967-1972 Disc Brake Spindle |
| Oldsmobile | Oldsmobile F85 1967-1969 Drum Brake Spindle |
| Oldsmobile | Oldsmobile F85 1970-1972 Drum Brake Spindle w/o O.A.I |
| Oldsmobile | Oldsmobile F85 1970-1972 w/ O.A.I. Drum Brake Spindles |
| Oldsmobile | Oldsmobile F85 1964-1972 w/ Ridetech Pin Spindle |
| Oldsmobile | Oldsmobile Omega 1973-1974 Disc Brake Spindle |
| Oldsmobile | Oldsmobile Omega 1973-1974 Drum Brake Front |
| Oldsmobile | Oldsmobile Omega 1973-1974 w/ Ridetech Pin Spindle |
| Oldsmobile | Oldsmobile Vista Cruiser 1964-1966 All |
| Oldsmobile | Oldsmobile Vista Cruiser 1967-1972 Disc Brake Spindle |
| Oldsmobile | Oldsmobile Vista Cruiser 1967-1972 Drum Brake Spindle |
| Oldsmobile | Oldsmobile Vista Cruiser 1964-1972 w/ Ridetech Pin Spindle |
| Pontiac | Pontiac Acadian 1964-1966 All |
| Pontiac | Pontiac Acadian 1967-1971 Disc Brake Spindle |
| Pontiac | Pontiac Acadian 1967-1971 Drum Brake Spindle |
| Pontiac | Pontiac Beaumont 1964-1966 All |
| Pontiac | Pontiac Beaumont 1967-1969 Disc Brake Spindle |
| Pontiac | Pontiac Beaumont 1967-1969 Drum Brake Spindle |
| Pontiac | Pontiac Beaumont 1964-1969 w/ Ridetech Pin Spindle |
| Pontiac | Pontiac Firebird 1967-1969 Disc Brake Spindle |
| Pontiac | Pontiac Firebird 1967-1969 Drum Brake Spindle |
| Pontiac | Pontiac Firebird 1967-1969 w/ Ridetech Pin Spindle |
| Pontiac | Pontiac Grand Prix 1969-1972 Disc Brake Spindle |
| Pontiac | Pontiac Grand Prix 1969 Drum Brake Spindle |
| Pontiac | Pontiac GTO 1964-1966 All |
| Pontiac | Pontiac GTO 1967-1974 Disc Brake Spindle |
| Pontiac | Pontiac GTO 1974 Drum Brake Front |
| Pontiac | Pontiac GTO 1967-1971 Drum Brake Spindle |
| Pontiac | Pontiac GTO 1964-1972 w/ Ridetech Pin Spindle |
| Pontiac | Pontiac LeMans 1964-1966 All |
| Pontiac | Pontiac LeMans 1967-1972 Disc Brake Spindle |
| Pontiac | Pontiac LeMans 1967-1972 Drum Brake Spindle |
| Pontiac | Pontiac LeMans 1964-1972 w/ Ridetech Pin Spindle |
| Pontiac | Pontiac Tempest 1964-1966 All |
| Pontiac | Pontiac Tempest 1967-1970 Disc Brake Spindle |
| Pontiac | Pontiac Tempest 1967-1970 Drum Brake Spindle |
| Pontiac | Pontiac Tempest 1964-1970 w/ Ridetech Pin Spindle |
| Pontiac | Pontiac Ventura 1971-1974 Disc Brake Spindle |
| Pontiac | Pontiac Ventura 1971-1974 Drum Brake Front |
| Pontiac | Pontiac Ventura 1971-1974 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1960-1965 Falcon w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1962-1967 Chevy II / Nova w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1963-1982 C2/C3 Corvette w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1964-1966 Mustang w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1964-1972 GM A Body w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1965-1979 F100 w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1967-1969 GM F Body w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
| Ridetech | Ridetech 1968-1974 GM X Body w/Pin Spindle 9999 w/ Ridetech Pin Spindle |
Specifications
Wilwood Forged Dynalite Pro Series Front Brake Kit GM 1967-1969 F-Body & 1964-1974 A-Body
| For Make | Chevrolet |
|---|---|
| For Model | Camaro, Chevelle, and Nova |
| For Year |
