Aluminum Rear Floor Kit For 10-505 Frame Kits 1978-1988 Chevrolet Malibu Rear Frame Kits

No reviews

Price:
Sale price$389.00

Description

Aluminum .040, PVC coated, works on  10-505 frame, 78-88 Malibu rear frame kit

Panels are bead rolled, bent formed to match frame. Finish trimming, fitting required.

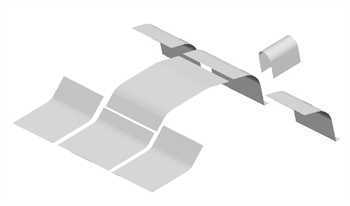

Item Quantity Part No. Description
1 1 10-81X-01 Floor Panel - Center Front
2 1 10-81X-02 Floor Panel - Center Middle
3 1 10-81X-03 Floor Panel - Center Rear
4
2 10-81X-04 Floor Panel - Outside Front
5
2 10-81X-05 Floor Panel - Outside Rear
6
1 10-81X-06 Trans Tunnel Section

Installation

THIS KIT IS TO BE INSTALLED AFTER THE FRAME & WHEEL TUBES
ARE IN THE CAR.DO NOT PERMINENTLY FASTEN ANY OF THE PANELS UNTIL ALL OF THEM
HAVE BEEN TRIMMED FOR THE FINAL FIT.
1. USING A STRAIGHT EDGE TRACE THE CONTOUR OF THE TOP OF THE FRAME RAILS
ON THE INSIDE OF THE BODY. USE CARDBOARD CUT OUT TEMPLATES TO MATCH THE
SHAPE OF THE BODY.
2. INSTALL THE FOUR OUTER PANELS. THESE PANEL SIT ON TOP OF THE RAILS WITH
THE EDGE ABOUT 3/4" IN FROM THE OUTSIDE OF THE RAIL. THE INNER EDGE OF THE
FRONT PANELS WILL HAVE TO BE TRIMED SO THAT THE IT IS AGAINEST THE FRONT OF
THE FRAME CROSSMEMBER. USE THE TEMPLATES TO TRIM THE OUTER EDGES TO MATCH
THE CONTOUR OF THE BODY.
3. TRIM THE CENTER REAR PANEL TO FIT AGAINEST THE REAR TRUNK PANEL. THE FRONT
OF THE PANEL IS LONG ENOUGH TO OVER LAP THE FRONT CENTER PANEL.
4. TEMPERARILY INSTALL THE CENTER FRONT PANEL AND TRIM THE TRANS TUNNEL
SECTION TO FIT. MARK THE TUNNEL OPENING ON THE CENTER FRONT PANEL. CUT OUT AN
OPENING IN THE PANEL BEING SURE TO LEAVE ENOUGH MATERIAL SO THE TUNNEL
SECTION CAN BE FASTENED TO IT.

Specifications

Aluminum Rear Floor Kit For 10-505 Frame Kits 1978-1988 Chevrolet Malibu Rear Frame Kits
For Make
For Model
For Year
