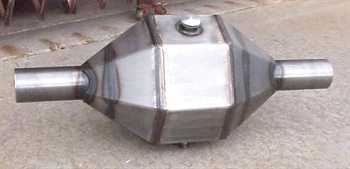

Fabricated 9" Ford Chromoly Housing Bare With Housing Ends

S&W Performance Group's fabricated rear housing is perfect for drag race and pro/street use. The center is 17" wide with internal axle tube gussets for added strength and axle tube stability. The S&W fabricated housing fits any 9" Ford center and is offered as either a bare center with 3" x .118" wall axle tubes or as a finished rear axle housing to fit any of S&W's rear frame kits.

S&W can also custom build a rear axle housing to a customer's specifications or application. A bare housing will make a finished rear housing up to 72" wide. Every rear housing features a filler, a magnetic drain and a vent.

Includes

Rear Axle Housing
Housing Ends*

Does not include brackets or back brace.

*Customer must specify the type of housing ends and the housing width

Material
4130 Chromoly Steel

Dimensions
Box Width: 17"
Axle Tubes: 3" x .188 Wall Thickness
Overall Width: 42"
Maximum Width: 28" Housing End to Housing End
