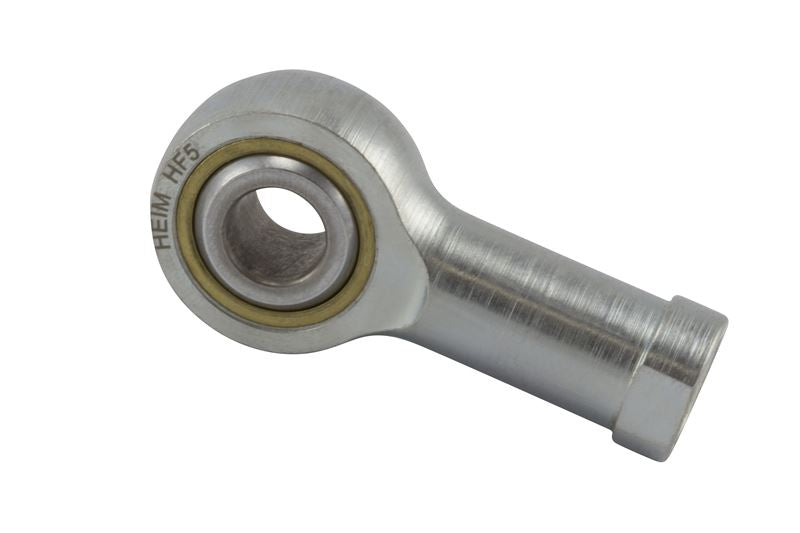

HF5 - RBC Heim Rod End Bearing - Female, 4 Piece Metal-to-Metal, 0.3125 inches Bore, .3125-24 Threads
Utilizes brass inserts to provide lubricity in the bearing area. ~Produced to tight tolerances for applications where positioning accuracy is critical. ~Rod end body and ball have corrosion resistance coating.
Specifications
|
Type |
Female Spherical Plain Rod End |
|
Style |
Four Piece - Metal to Metal |
|
Series |
Heim® |
|
Ball Material |
52100 Alloy Steel |
|
Housing Material |
Carbon Steel |
|
Insert Material |
Brass |
|
Finish |
Steel |
|
Bearing Type |
4 Piece-Metal-to-Metal |
|
Lubrication Type |
Non-Lubricatable |
|
Thread Type |
UNF-3B |
|
Performance |
Precision |
|
Thread Handedness |
Right-Handed |
|
Operating Temperature [Max] |
250 ºF |
|
Static Radial Load |
3350 lbf |
|
Weight |
0.08 lb |
|
Applications |
Control Linkages |
|
Bore |
0.31 in |
|
Ball Width |
0.437 in |
|
Housing Width |
0.344 in |
|
Head Diameter |
0.875 in |
|
Length to Center of Ball |
1.375 in |
|
Thread Length |
0.750 in |
|
Thread Size |
.3125-24 |
|
Ball Diameter |
0.625 in |
|
Width Across Flats |
0.437 in |
|
Total Height |
1.813 in |
|
Misalignment Angle |
7 º |
|
Center Line Length |
1.875 in |
