1978-1982 Chevrolet Malibu, 1978-1988 Monte Carlo, GM G-Body Adjustable Competition Upper Control Arm

No reviews

Price:
Sale price$322.91

Description

Upgrade your GM G-Body vehicle's control with our Adjustable Competition Upper Control Arm. Perfect for 1978-1982 Chevrolet Malibu and 1978-1988 Monte Carlo, enjoy precise control and increased performance. Made with advanced technology and adjustable features for a custom fit.

  • Upper control arms with hex adjuster for setting pinion angle
  • Chromoly rod end with steel spacers at front of link
  • Aluminum bushings with steel sleeves replaces stock bushings on rear
  • Includes Grade 8 Bolts with Black Powder Coating

Download Product Data Sheet

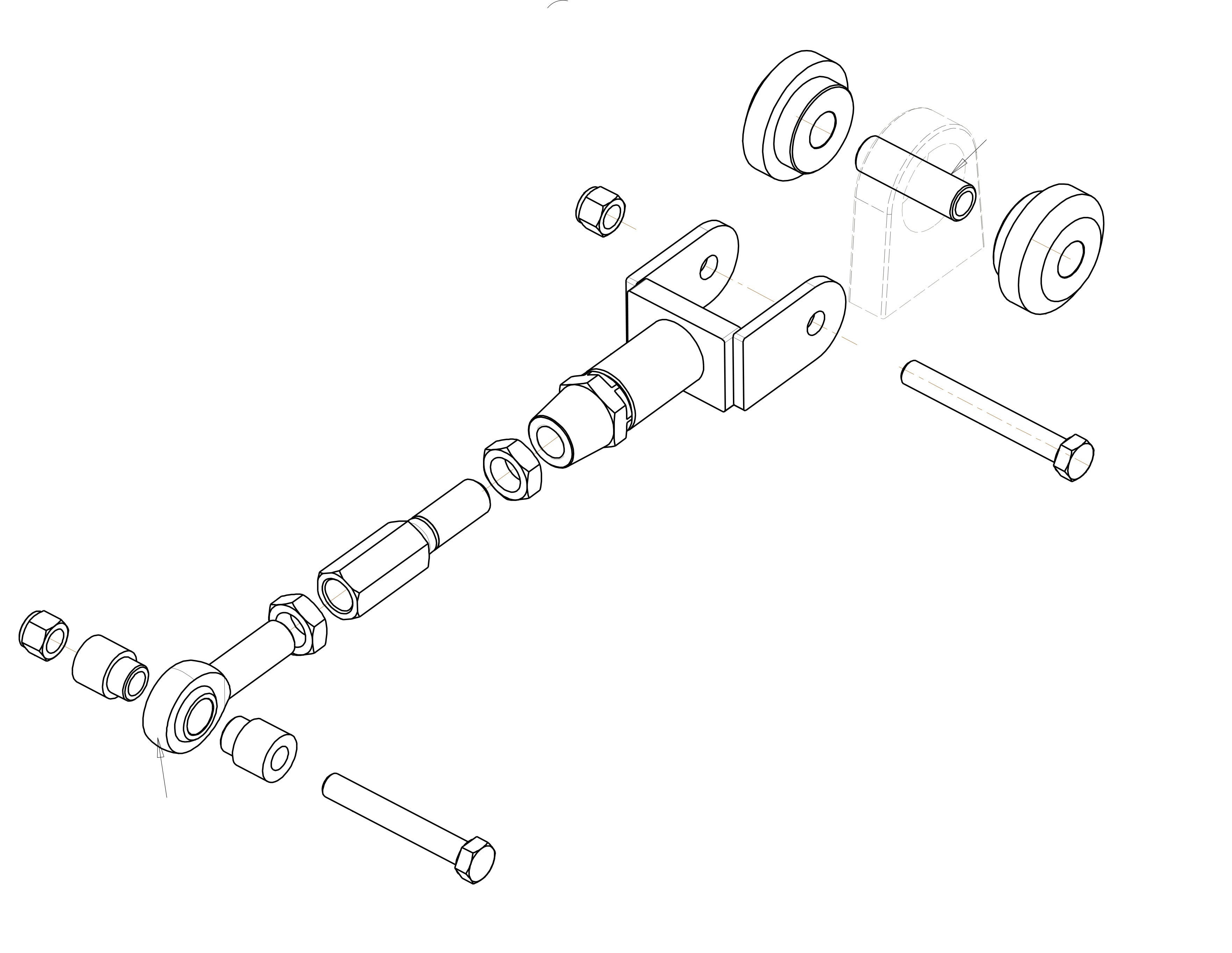

Bill of Materials

 Item Qty
Part Number
Description
1 1 40-622-01
Housing Link
2
2
40-622-02
Aluminum Bushing - HSG Lug
3
1
40-602-03
Steel Sleeve Bushing
4
2
40-723-03
Spacer Bushing
5
1
64-212
3/4 x 3/4 RHM Rod End
6
1
65-1001
Hex Adjuster
7
1
65-120
3/4 Jam Nut
8
1
65-121
3/4 LH Jam Nut
9
2
65-052
1/2 x 4" Lg Bolt
10
2
65-135
1/2 Nylock Nut
11
2
65-051
1/2 x 3 1/2" LG Bolt

Installation Instructions

1. Raise the car and support the frame and rear housing so that they can not move when the control arms are removed.

2. Remove one control arm

3. Assemble the housing link, hex adjuster, rod end and jam nuts. Adjust the length of the new control arms to be the same as the stock arms.

4. Remove the original rubber bushing from the lug on the top of the rear housing. Make sure the inside surface of the lug is clean and free of any old bushing material. Coat the inside surface of the lugs with never seize. Insert the aluminum spacers into the housing lug. Coat the O.D. of the steel inner sleeve with never seize and insert the aluminum spacers. Coat the faces of the aluminum spacers.

5. Install the new upper control arm. Bolt the u-bracket to the rear housing. Insert a spacer bushing into each side of the front rod end. Swing the control arm into place. You may have to adjust the length or jack the rear up slightly to get the bolt in. Do not tighten the bolts at this time.

6. Repeat the above steps for the other side.

7. With the car at ride height and all of the weight being supported by the suspension check the pinion angle. Pinion angle should be 0 degrees to 1 1/2 degrees down. To adjust the pinion angle remove one of the u-bracket bolts and turn the hex adjuster on the other control arm.

8. Tighten the jam nuts on the arm you adjusted. Adjust the other link and bolt it in. Tighten the Jam nuts. Tighten the front and rear nuts and bolts of both control arms.

Specifications

1978-1982 Chevrolet Malibu, 1978-1988 Monte Carlo, GM G-Body Adjustable Competition Upper Control Arm
For Make Chevrolet and GM
For Model Malibu, Monte Carlo, and G-Body
For Year 1978, 1979, 1980, 1981, and 1982
