Description
ML10CR - RBC Heim Rod End Bearing - Standard Series M CR, Male, 2 Piece - Metal to Metal
| Ball Diameter | 1.125 in |
| Ball Material | 52100 Alloy Steel |
| Bore Diameter | 0.6300 in |
| Grade | Commercial Extra Capacity |
| Head Diameter | 1.5000 in |
| Head Width | 0.562 in |
| Housing Material | 14 mm |
| Lubrication Type | Non-Lubricatable |
| Manufacturer UPC Number | 637400158200 |
| Max Operating Temperature | 250 °F |
| Operating Temperature Range | Max 250° |
| Overall Height | 3.3750 in |
| Race Material | Steel |
| Radial Static Load Capacity | 10000 lbf |
|
Series
|
Heim® |
|
Shank Thread Size
|
.6250-18 |
|
Thread Direction
|
Left Hand |
|
Thread Type
|
UNF-3A |
|
Weight
|
0.4 lb |
|
Product Type
|
Spherical Rod Ends |
Specifications

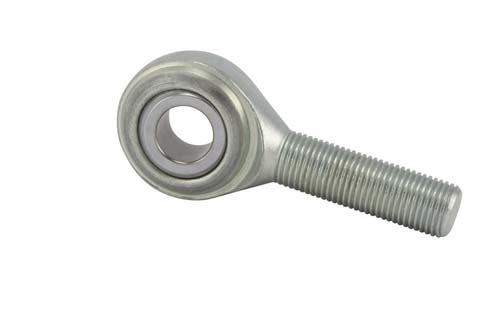

5/8" Left Hand Male Rod End
| For Make | |
|---|---|
| For Model | |
| For Year |
