Description
Ultra Fab Ford 9 in Rear End for 79-04 Mustang with Mounts, Ends, Fill, Drain, & Vent.
Ultra Fabricated housing centers are constructed from .125” alloy steel with a heavy duty .375” face plate. Triangulated design provides rigid housing tube support for more consistent and straighter launches. Internal radial gusset plates brace end of housing tube and increase overall housing stiffness. Tube insertion locations are slotted for 5” to allow complete and secure welding of the tubes to the housing. The housing is designed to provide the clearance necessary for cases with heavy duty main caps and also allowing the use of 9”, 9 1/2”, or 10” gear sets. Both housing centers come equipped with center section studs installed.

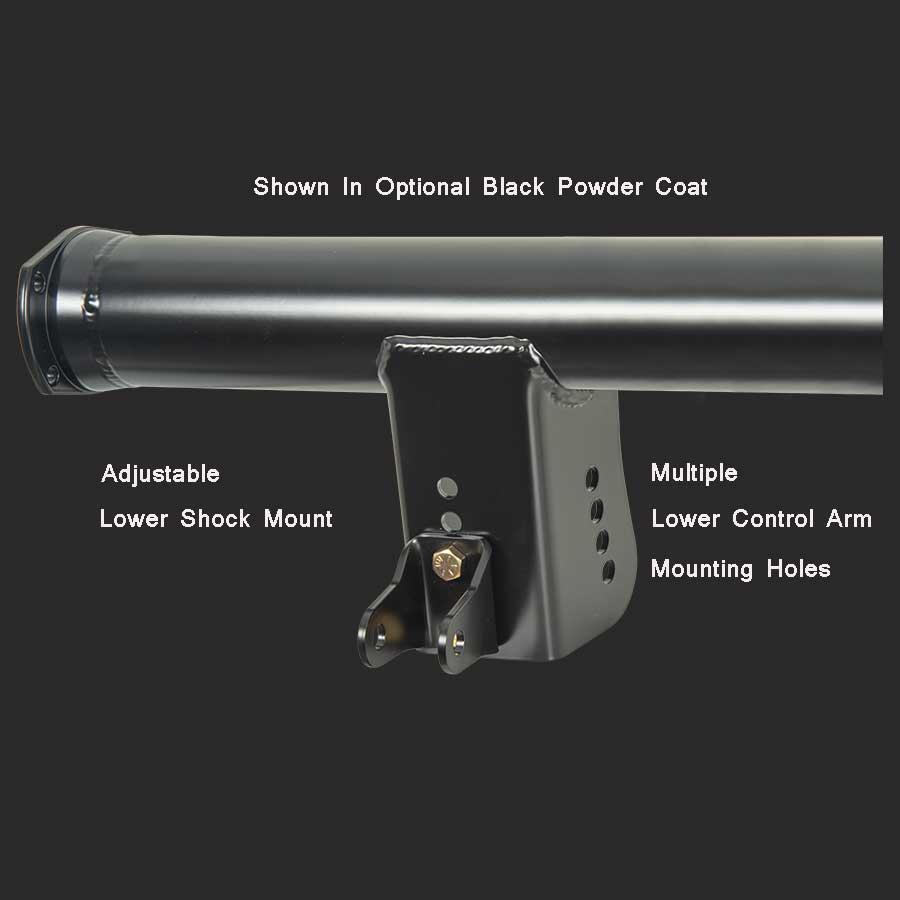

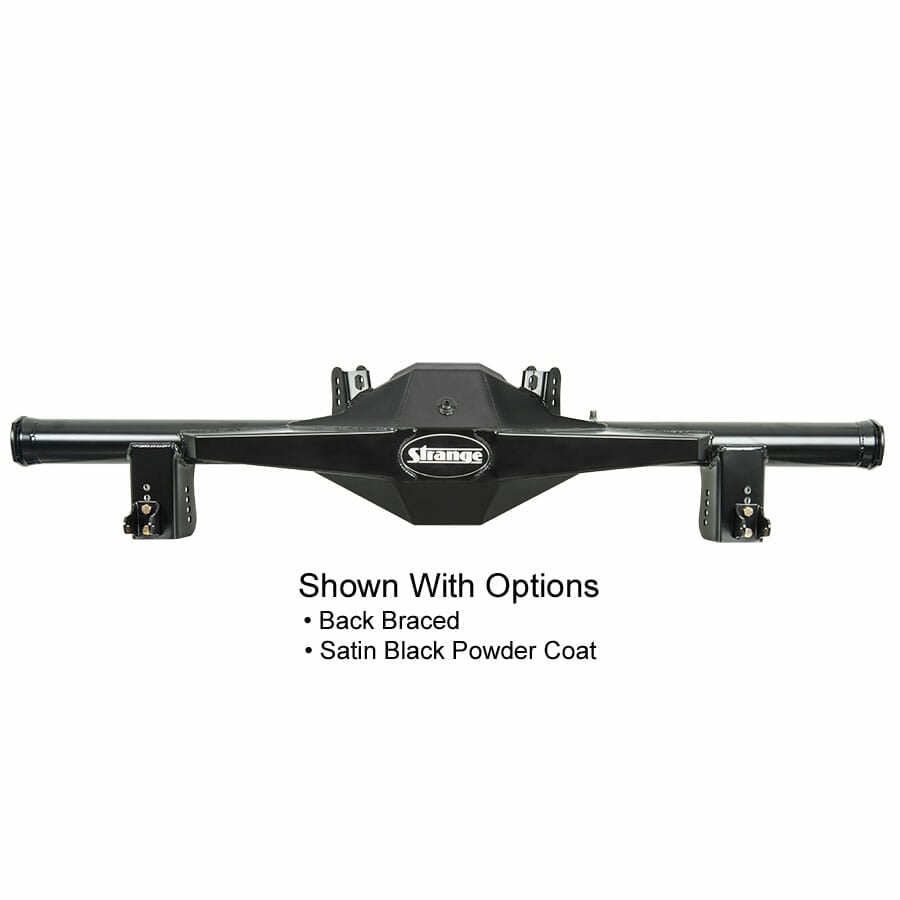

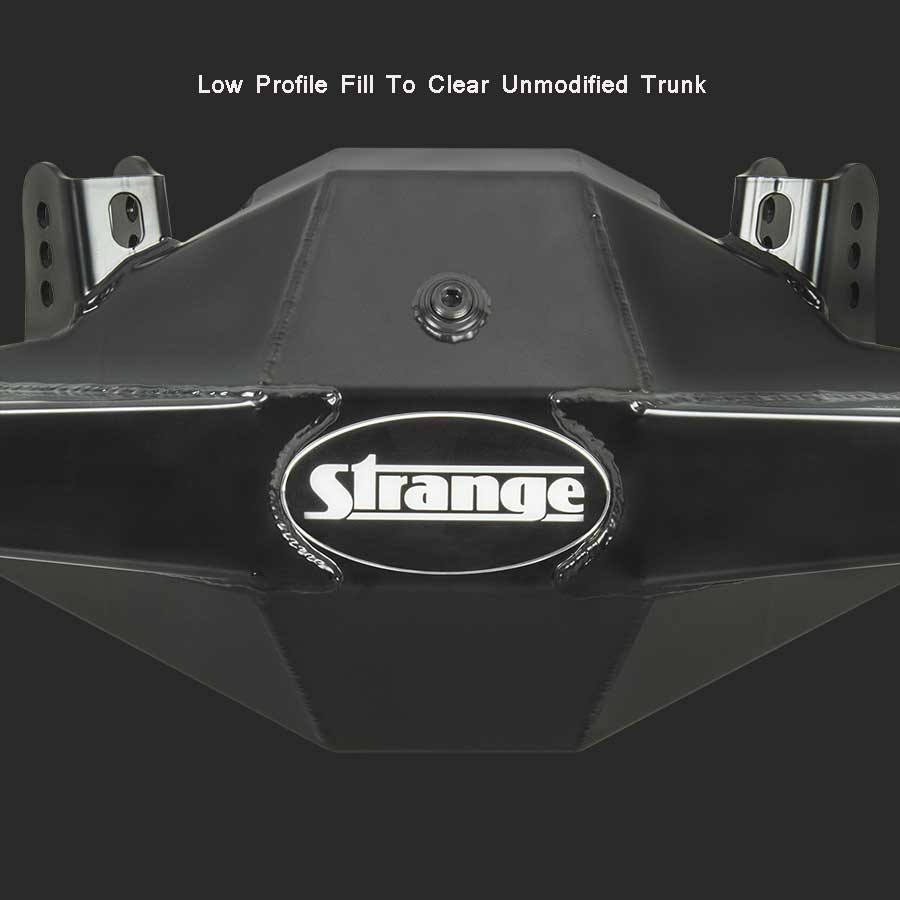

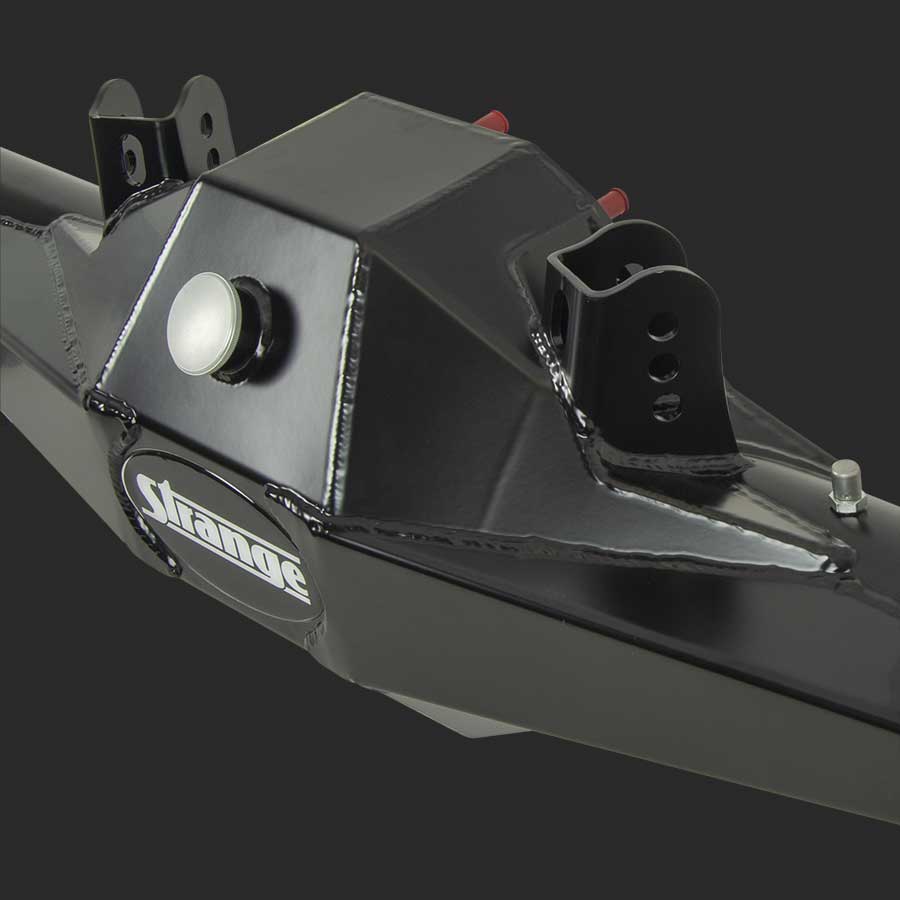

The housing is fitted with fill and drain plugs, tubed with .250” wall, 3 1/4” mild steel tubing, and choice of mounts and housing ends. This configuration is the safest way to maintain the proper alignment of the housing ends. The fixturing and welding of the housing ends is always our last operation. For vehicles that will see very hard launches, there is an option to weld a back brace along the rear of the housing. It is designed to eliminate housing and tube flex that can occur under harsh conditions. An optional satin black powder coat finish is also available.
1979 Mustang Ultra Fab Ford 9 in Rear End
1980 Mustang Ultra Fab Ford 9 in Rear End
1981 Mustang Ultra Fab Ford 9 in Rear End
1982 Mustang Ultra Fab Ford 9 in Rear End
1983 Mustang Ultra Fab Ford 9 in Rear End
1984 Mustang Ultra Fab Ford 9 in Rear End
1985 Mustang Ultra Fab Ford 9 in Rear End
1986 Mustang Ultra Fab Ford 9 in Rear End
1987 Mustang Ultra Fab Ford 9 in Rear End
1988 Mustang Ultra Fab Ford 9 in Rear End
1989 Mustang Ultra Fab Ford 9 in Rear End
1990 Mustang Ultra Fab Ford 9 in Rear End
1991 Mustang Ultra Fab Ford 9 in Rear End
1992 Mustang Ultra Fab Ford 9 in Rear End
1993 Mustang Ultra Fab Ford 9 in Rear End
1994 Mustang Ultra Fab Ford 9 in Rear End
1995 Mustang Ultra Fab Ford 9 in Rear End
1996 Mustang Ultra Fab Ford 9 in Rear End
1997 Mustang Ultra Fab Ford 9 in Rear End
1998 Mustang Ultra Fab Ford 9 in Rear End
1999 Mustang Ultra Fab Ford 9 in Rear End
2000 Mustang Ultra Fab Ford 9 in Rear End
2001 Mustang Ultra Fab Ford 9 in Rear End
2002 Mustang Ultra Fab Ford 9 in Rear End
2003 Mustang Ultra Fab Ford 9 in Rear End
2004 Mustang Ultra Fab Ford 9 in Rear End
Specifications
For Make | Ford |
---|---|
For Model | Mustang |
For Year |
